How To Build a Temporary Chain Link Fence

DB Fencing can supply you a quick and convenient solution for your temporary chain link fence needs in event or job site. Our high quality Chain Link Fence Panels are free-standing, so no drilling post hole is required , which can be portable and used many times. Temporary Fence Panels are supported by panel stands or (feet).

Known for their quality and durability, our Temporary Fence Panels have become the first choice of many contractors, construction companies and special event organizers.

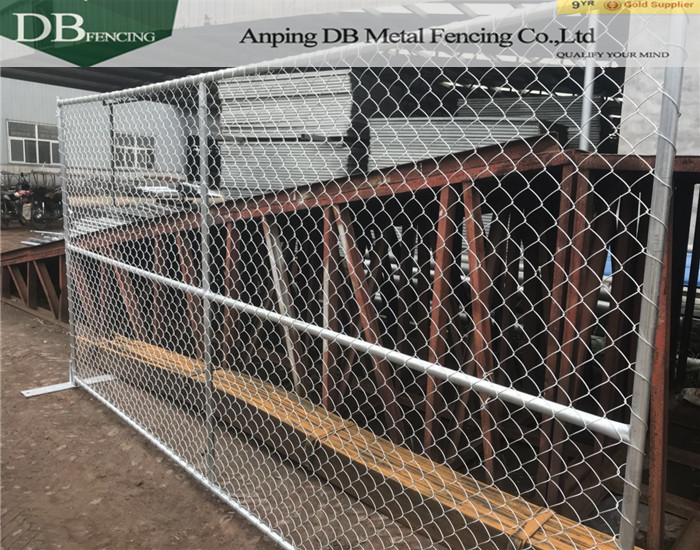

1. Temporary Chain Link Fence Panels Specs

• Panel Size: 6ft x 12ft, 6ft x 10ft, 6ft x 8ft, 8ft x10ft, 8ft x 12ft

• Frame: 1.25"/32 mm, 1.5"/38 mm, 1.6"/40 mm round optional

• Chain Link Mesh Wire: 9 ga/2.9mm, 10.5 ga/2.7mm, 11 ga/2.3mm, 11.5 ga/2.2mm, 12 ga/2.0mm optional

• Chain Link Mesh Size: 2" (50 × 50 mm), 2.25" (57 × 57 mm), 2.4" (60 × 60 mm), 2.75" (70 × 70 mm) optional

• Cross Brace: Vertical, horizontal brace with 1"/1.25’’ round or the same with frame O.D

• Treatment: Pre-Galvanized pipe and panel welded,then galvanized spraying or hot dipped galvanized

• Standard 1: AS 1725-2010 Chain Link Fabric Security Fences and Gates

• Standard 2: AS 2423-2002 – Coated Steel Wire Fencing Products for Terrestrial,Aquatic and General Use

• Standard 3: AS 54687-2007 –  Temporary Fencing and Hoarding


2.  Cross Brace: 1" or 1.25” O.D,14 Gauge wall thick

• Plus Bracing – Both vertical and horizontal bracing to impact strength from outside and wind to be a durable panels

• Vertical Bracing – The vertical brace (centered in frame horizontally) increasin the strength and durability of the fence panel

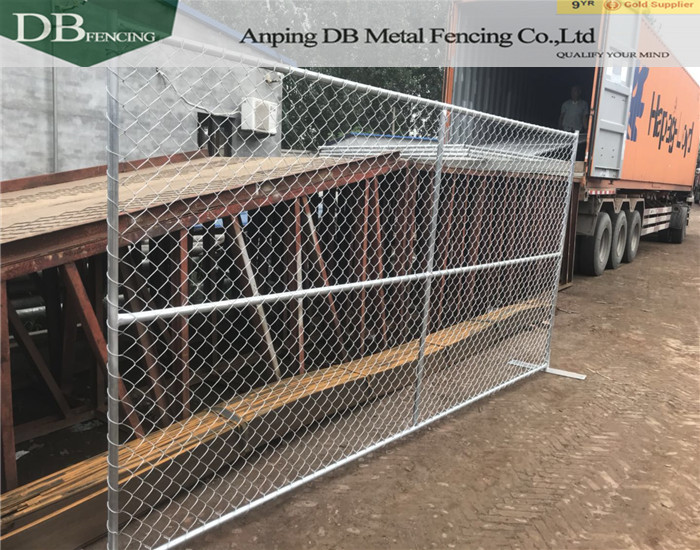

3. The stands of temporary chain link fence size 16" x 36", with 1-3/8" diameter tubing and slightly smaller uprights for panels to fit over.

4. Temporary chain link fence clamps

Pressed steel, 8 Gauge, Designed to join fence panels together, Hot-dipped galvanized silver color,

Included 3/8" x 2-1/2" H.D.G. carriage bolt & nut; priced per Set.

5. Barb Wire, Razor Wire -Stop attempting to gain illegal access to your site

The barb wire and razor wire can be along the top of our 6ft and 8ft height temporary chain link fences and matching gates.

Each wire type will discourage fence climbers. We advise customers check with local laws to learn if barb/razor is permitted or violates a city ordinance.

Normally three strands barbed wire from post to post in a straight line, or arranging the barb arms at a 45 degree angle. The latter method is very rare because the barb sticks out into a walking path.

6. Privacy Fence Screens, Windscreens

The privacy fence screens / windscreens is fit to 6ft or 8ft height chain link fences, which is  polyethylene mesh to provide 88% privacy and 12% airflow.

Highly effective to dampen wind, resist water, mold and mildew, provide privacy and cut UV rays.

Very popular for temporary commercial use at construction sites, agricultural fields, emergency restoration areas or shelters, sports fields, courtyards, nurseries or gardens.

7. Temporary chain link fence gate

• Personal Gate: The gate of Temp Fence chain link fence is available with 3′ wide opening Pedestrian
  gate with hinges and pad-lockable latch, giving a path to safely and efficiently allow the crows.





• Swing gates: The swing gate fully open to allow trucks to pass through. If the opening is 12 feet or less (such as a pedestrian entrance), a single swing gate is sufficient. Swing gates usually open inward (toward the property), unless impossible to do otherwise. For wider openings (vehicle entrances), double swing gates are recommended as this configuration requires less room to operate than a single, longer gate.

• Slide gates: Allows sufficient room for traffic of all kinds to pass through. Slide Gates require very little room to operate and are a preferred option when a construction area has limited space, such as near a roadway, property line or permanent structure. The area around a slide gate must be level to allow each gate to move freely and parallel to the attached chain link fence for proper operation

.

 8. Temporary chain link fence packing and loading



9. Temporary chain link fence features

• 360° full welded tubular frame
• Galvanized 60 or 28 microns to anti- corrosion
• Installs on any surface including ground, asphalt or concrete
• ASTM A392-06 standard minimize the amount of corrosion
• The welding corner joints are galvanized sprayed painting to cover any exposed metal.

• Galvanized saddle clamps, nuts, bolts used to attach panels together.
•

Temporary Chain Link Fence Home Depot

DB Fencing Company provides premium quality temporary chain link fence that are hand crafted from start to finish. Our chain link fence panels are guaranteed to last 5 years. All panels are constructed using low carbon Steel Q235 material. Also, tension bars and tension bands on the left and right can be requested by customers.

1. Temporary Chain Link Fence Panels Specs

• Panel Size: 6ft x 12ft, 6ft x 10ft, 6ft x 8ft, 8ft x10ft, 8ft x 12ft

• Frame: 1.25"/32 mm, 1.5"/38 mm, 1.6"/40 mm round optional

• Chain Link Mesh Wire: 9 ga/2.9mm, 10.5 ga/2.7mm, 11 ga/2.3mm, 11.5 ga/2.2mm, 12 ga/2.0mm optional

• Chain Link Mesh Size: 2" (50 × 50 mm), 2.25" (57 × 57 mm), 2.4" (60 × 60 mm), 2.75" (70 × 70 mm) optional

• Cross Brace: Vertical, horizontal brace with 1"/1.25’’ round or the same with frame O.D

• Treatment: Pre-Galvanized pipe and panel welded,then galvanized spraying or hot dipped galvanized

• Standard 1: AS 1725-2010 Chain Link Fabric Security Fences and Gates

• Standard 2: AS 2423-2002 – Coated Steel Wire Fencing Products for Terrestrial,Aquatic and General Use

• Standard 3: AS 54687-2007 –  Temporary Fencing and Hoarding


2.  Cross Brace: 1" or 1.25” O.D,14 Gauge wall thick

• Plus Bracing – Both vertical and horizontal bracing to impact strength from outside and wind to be a durable panels

• Vertical Bracing – The vertical brace (centered in frame horizontally) increasin the strength and durability of the fence panel

3. The stands of temporary chain link fence size 16" x 36", with 1-3/8" diameter tubing and slightly smaller uprights for panels to fit over.

4. Temporary chain link fence clamps

Pressed steel, 8 Gauge, Designed to join fence panels together, Hot-dipped galvanized silver color,

Included 3/8" x 2-1/2" H.D.G. carriage bolt & nut; priced per Set.

5. Barb Wire, Razor Wire -Stop attempting to gain illegal access to your site

The barb wire and razor wire can be along the top of our 6ft and 8ft height temporary chain link fences and matching gates.

Each wire type will discourage fence climbers. We advise customers check with local laws to learn if barb/razor is permitted or violates a city ordinance.

Normally three strands barbed wire from post to post in a straight line, or arranging the barb arms at a 45 degree angle. The latter method is very rare because the barb sticks out into a walking path.

6. Privacy Fence Screens, Windscreens

The privacy fence screens / windscreens is fit to 6ft or 8ft height chain link fences, which is  polyethylene mesh to provide 88% privacy and 12% airflow.

Highly effective to dampen wind, resist water, mold and mildew, provide privacy and cut UV rays.

Very popular for temporary commercial use at construction sites, agricultural fields, emergency restoration areas or shelters, sports fields, courtyards, nurseries or gardens.

7. Temporary chain link fence gate

• Personal Gate: The gate of Temp Fence chain link fence is available with 3′ wide opening Pedestrian
  gate with hinges and pad-lockable latch, giving a path to safely and efficiently allow the crows.





• Swing gates: The swing gate fully open to allow trucks to pass through. If the opening is 12 feet or less (such as a pedestrian entrance), a single swing gate is sufficient. Swing gates usually open inward (toward the property), unless impossible to do otherwise. For wider openings (vehicle entrances), double swing gates are recommended as this configuration requires less room to operate than a single, longer gate.

• Slide gates: Allows sufficient room for traffic of all kinds to pass through. Slide Gates require very little room to operate and are a preferred option when a construction area has limited space, such as near a roadway, property line or permanent structure. The area around a slide gate must be level to allow each gate to move freely and parallel to the attached chain link fence for proper operation

.

 8. Temporary chain link fence packing and loading



9. Temporary chain link fence features

• 360° full welded tubular frame
• Galvanized 60 or 28 microns to anti- corrosion
• Installs on any surface including ground, asphalt or concrete
• ASTM A392-06 standard minimize the amount of corrosion
• The welding corner joints are galvanized sprayed painting to cover any exposed metal.

• Galvanized saddle clamps, nuts, bolts used to attach panels together.
•

Roundtop Security Fence chain link 2.2×1.8m

Temporary chain link fence is also called mobile fence mesh, temporary fence. Our temporary chain link fence are totally reach Australian standard, which all are hot dipped galvanized.They are popular in Australia, American, England, Africa market…….

Round Security Fence Chain Link 2.2×1.8m uses high quality mild steel wire and galvanized tube as raw material, the infill mesh and frame pipe are tightly wrapped together by tension bars and tension bands.The finished temporary chain link fencing is strong enough and durable for all site-specific requirement, either uneven ground or sloping sites.

In addition,Round security chain link fence panel with wire diameter of 11 or 9 gauge, 2" mesh opening, frame outside diameter of 1-1/4", plus the hot dipped galvanized surface treatment, its service life can be up to 10 years.

1. Round Top Security Fence Chain Link 2.2×1.8m Quality Testing

TEMPORARY CHAIN LINK FENCE PANELS

• 360° full welded tubular frame. All pipes are 360° full welding circled to make sure a firm fence structure. This can ensure that the temporary fencing is not damaged during the frequent moving process, and will not be corroded even in hostile environment.

• Hand craft techniques manufacture. Panels are filled with galvanized chain link mesh and wrapped around the frame tube with tension bars and tension bands by hand in a rather tension way.

• Another option sturdy attached way. Available flat bar the use clamps to connect the two adjacent panels.

2. Round Top Security Fence Chain Link 2.2×1.8m Base Types

Temporary chain link fence feet are a high quality, heavy duty, long life product. size is 914x450mm.

Your High quality steel temporary chain link fence will look greater and be safer.

3. Round Top Security Fence Chain Link 2.2×1.8m Steel Clamp

4. Round Top Security Fence Chain Link 2.2×1.8m Loading

WHY CHOOSE US?

• Hand craft techniques for highest strength. Tie wires are tightly wrapped around the panel frame by tension bars and tension bands. This to ensuring both longevity and easy of loading.

• Three type of stable fence feet optional. Made of highly durable materials, each type of panel feet is strong and sturdy enough to keep your temporary fence panels upright. Designed to stack when moving from one project to the next.

• Strong anti-corrosion surface treatment. Treated with hot dipped galvanized to ensure at least 70 µm thickness of zinc coating. Service life can reach more than ten years.

• One-stop supply system. All needed hardware are included in the bulk cargo.

• Reliable and professional advice. As a company integrating production and sales, we’d like to give our customers a friendly and reliable advice for picking up the most suitable one for your desired application.

• Customized size for your needs. We have a standard size temporary chain link fencing inventory. Beside, we accept customized orders of special panel length and height along with the pipe thickness and diameter.

•  After-sales service

  Our after-sales service start immediately after signing the contract.    1. No matter FOB or CIF the price term is we would try our best to find a lowest

   freight cost for customers’ reference.

   2. Do our best to help customer arrange the shipment and customs clearance.   3. Installation, maintenance and repair instructions with full information.

   4.3-8 years warranty depends to different product

   5. Accept Changing or Refunding if the products cannot be installed rightly
  Our Services


  1. Reply your enquiry in 24 working hours;

  2. Experienced staffs will answer all your questions in professional and fluent English;

  3. Customized design is available.

  4. Exclusive & unique solution can be provided by our well-trained and professional engineers;

  5. Special discount can be offered with large quantity;

  6. We will try our best to meet your requirements and supply you best quality of the products.

Portable Construction chain link fence panels

Temporary chain link fence is also called mobile fence mesh, chain link fence panel. Our temporary chain
link fence are totally reach Australian standard, which all are hot dipped galvanized.They are popular
in Australia, American, England, Africa market .
Temporary Chain Link Fence uses high quality mild steel wire and galvanized tube as raw material, the
infill mesh and frame pipe are tightly wrapped together by tension bars and tension bands.The finished
temporary chain link fencing is strong enough and durable for all site-specific requirement, either uneven
ground or sloping sites.

In addition, temporary chain link fence with wire diameter of 9 gauge, 11 gauge and 11.5 gauge, 2”, 2-1/4”, 2-2/5"

mesh opening, frame outside diameter of 1-1/4" and 1-3/8”,plus the hot dipped galvanized surface treatment, its service

life can be up to 10 years.

Our most popular size Height: 6’ and Length:12’ is for construction, municipalities, schools, events and

residential projects.

Height: 8’ and Length: 12’ for large construction and commercial projects that gives you that added level

of security and safety.

1. Temporary Chain Link Fence Quality Testing

DB Chain Link Fence panels comply with ASTM A392-06 standards, having superior exposure and corrosion

resistance in an outdoor construction site.

360° full welded tubular frame. All pipes are 360° full welding circled to make sure a firm fence structure.

This can ensure that the temporary fencing is not damaged during the frequent moving process, and will not

be corroded even in hostile environment.

Hand craft techniques manufacture. Panels are filled with galvanized chain link mesh and sometimes

wrapped around the frame tube with tension bars and tension bands by hand in a rather tension way.

Another option sturdy attached way. Available flat bar the use clamps to connect the two adjacent panels.

2. Temporary Chain Link Fence Stands Types

Our Temporary chain link Fence Panel stands (footings) are constructed from galvanized 1” or 1-3/8"

diameter tubing and welded into an approximate 16" x 36" rounded rectangles. With two smaller diameter

uprights welded in place to accept the outer frame, these stands ensure stability and reliability.

3. Temporary Chain Link Fence Saddle Clamp

Each panel is further reinforced with Galvanized saddle clamps, nuts, bolts used to connect two panels together.

4. Temporary Chain Link Fence Loading

DB Chain link Panel Fencing is an excellent perimeter security solution , and easy to transport and

secure into place, above-ground panel fencing provides a sturdy and reliable fence for many job-site

applications.

5. Temporary Chain Link Fence Applications

Some of the most common uses for temporary chain link panels include:

• Commercial Construction Sites

• Housing Developments

• Highway projects

• Remodels & store front renovation

• Public Works Projects

• Post-Disaster Reconstruction

Construction site temporary chain link fence with detachable base

Temporary chain link fence is also called mobile fence mesh, chain link fence panel. Our temporary chain
link fence are totally reach Australian standard, which all are hot dipped galvanized.They are popular
in Australia, American, England, Africa market .
Temporary Chain Link Fence uses high quality mild steel wire and galvanized tube as raw material, the
infill mesh and frame pipe are tightly wrapped together by tension bars and tension bands.The finished
temporary chain link fencing is strong enough and durable for all site-specific requirement, either uneven
ground or sloping sites.

In addition, temporary chain link fence with wire diameter of 9 gauge, 11 gauge and 11.5 gauge, 2”, 2-1/4”, 2-2/5"

mesh opening, frame outside diameter of 1-1/4" and 1-3/8”,plus the hot dipped galvanized surface treatment, its service

life can be up to 10 years.

Our most popular size Height: 6’ and Length:12’ is for construction, municipalities, schools, events and

residential projects.

Height: 8’ and Length: 12’ for large construction and commercial projects that gives you that added level

of security and safety.

1. Temporary Chain Link Fence Quality Testing

DB Chain Link Fence panels comply with ASTM A392-06 standards, having superior exposure and corrosion

resistance in an outdoor construction site.

360° full welded tubular frame. All pipes are 360° full welding circled to make sure a firm fence structure.

This can ensure that the temporary fencing is not damaged during the frequent moving process, and will not

be corroded even in hostile environment.

Hand craft techniques manufacture. Panels are filled with galvanized chain link mesh and sometimes

wrapped around the frame tube with tension bars and tension bands by hand in a rather tension way.

Another option sturdy attached way. Available flat bar the use clamps to connect the two adjacent panels.

2. Temporary Chain Link Fence Stands Types

Our Temporary chain link Fence Panel stands (footings) are constructed from galvanized 1” or 1-3/8"

diameter tubing and welded into an approximate 16" x 36" rounded rectangles. With two smaller diameter

uprights welded in place to accept the outer frame, these stands ensure stability and reliability.

3. Temporary Chain Link Fence Saddle Clamp

Each panel is further reinforced with Galvanized saddle clamps, nuts, bolts used to connect two panels together.

4. Temporary Chain Link Fence Loading

DB Chain link Panel Fencing is an excellent perimeter security solution , and easy to transport and

secure into place, above-ground panel fencing provides a sturdy and reliable fence for many job-site

applications.

5. Temporary Chain Link Fence Applications

Some of the most common uses for temporary chain link panels include:

• Commercial Construction Sites

• Housing Developments

• Highway projects

• Remodels & store front renovation

• Public Works Projects

• Post-Disaster Reconstruction

Wholesale 6 foot galvanized chain link fence

Temporary chain link fence is also called mobile fence mesh, chain link fence panel. Our temporary chain
link fence are totally reach Australian standard, which all are hot dipped galvanized.They are popular
in Australia, American, England, Africa market .
Temporary Chain Link Fence uses high quality mild steel wire and galvanized tube as raw material, the
infill mesh and frame pipe are tightly wrapped together by tension bars and tension bands.The finished
temporary chain link fencing is strong enough and durable for all site-specific requirement, either uneven
ground or sloping sites.

In addition, temporary chain link fence with wire diameter of 9 gauge, 11 gauge and 11.5 gauge, 2”, 2-1/4”, 2-2/5"

mesh opening, frame outside diameter of 1-1/4" and 1-3/8”,plus the hot dipped galvanized surface treatment, its service

life can be up to 10 years.

Our most popular size Height: 6’ and Length:12’ is for construction, municipalities, schools, events and

residential projects.

Height: 8’ and Length: 12’ for large construction and commercial projects that gives you that added level

of security and safety.

1. Temporary Chain Link Fence Quality Testing

DB Chain Link Fence panels comply with ASTM A392-06 standards, having superior exposure and corrosion

resistance in an outdoor construction site.

360° full welded tubular frame. All pipes are 360° full welding circled to make sure a firm fence structure.

This can ensure that the temporary fencing is not damaged during the frequent moving process, and will not

be corroded even in hostile environment.

Hand craft techniques manufacture. Panels are filled with galvanized chain link mesh and sometimes

wrapped around the frame tube with tension bars and tension bands by hand in a rather tension way.

Another option sturdy attached way. Available flat bar the use clamps to connect the two adjacent panels.

2. Temporary Chain Link Fence Stands Types

Our Temporary chain link Fence Panel stands (footings) are constructed from galvanized 1” or 1-3/8"

diameter tubing and welded into an approximate 16" x 36" rounded rectangles. With two smaller diameter

uprights welded in place to accept the outer frame, these stands ensure stability and reliability.

3. Temporary Chain Link Fence Saddle Clamp

Each panel is further reinforced with Galvanized saddle clamps, nuts, bolts used to connect two panels together.

4. Temporary Chain Link Fence Loading

DB Chain link Panel Fencing is an excellent perimeter security solution , and easy to transport and

secure into place, above-ground panel fencing provides a sturdy and reliable fence for many job-site

applications.

5. Temporary Chain Link Fence Applications

Some of the most common uses for temporary chain link panels include:

• Commercial Construction Sites

• Housing Developments

• Highway projects

• Remodels & store front renovation

• Public Works Projects

• Post-Disaster Reconstruction

Temporary Construction Chain Link Fence/Decorative Chain Link Wire Mesh

Temporary chain link fence is also called mobile fence mesh, chain link fence panel. Our temporary chain
link fence are totally reach Australian standard, which all are hot dipped galvanized.They are popular
in Australia, American, England, Africa market .
Temporary Chain Link Fence uses high quality mild steel wire and galvanized tube as raw material, the
infill mesh and frame pipe are tightly wrapped together by tension bars and tension bands.The finished
temporary chain link fencing is strong enough and durable for all site-specific requirement, either uneven
ground or sloping sites.

In addition, temporary chain link fence with wire diameter of 9 gauge, 11 gauge and 11.5 gauge, 2”, 2-1/4”, 2-2/5"

mesh opening, frame outside diameter of 1-1/4" and 1-3/8”,plus the hot dipped galvanized surface treatment, its service

life can be up to 10 years.

Our most popular size Height: 6’ and Length:12’ is for construction, municipalities, schools, events and

residential projects.

Height: 8’ and Length: 12’ for large construction and commercial projects that gives you that added level

of security and safety.

1. Temporary Chain Link Fence Quality Testing

DB Chain Link Fence panels comply with ASTM A392-06 standards, having superior exposure and corrosion

resistance in an outdoor construction site.

360° full welded tubular frame. All pipes are 360° full welding circled to make sure a firm fence structure.

This can ensure that the temporary fencing is not damaged during the frequent moving process, and will not

be corroded even in hostile environment.

Hand craft techniques manufacture. Panels are filled with galvanized chain link mesh and sometimes

wrapped around the frame tube with tension bars and tension bands by hand in a rather tension way.

Another option sturdy attached way. Available flat bar the use clamps to connect the two adjacent panels.

2. Temporary Chain Link Fence Stands Types

Our Temporary chain link Fence Panel stands (footings) are constructed from galvanized 1” or 1-3/8"

diameter tubing and welded into an approximate 16" x 36" rounded rectangles. With two smaller diameter

uprights welded in place to accept the outer frame, these stands ensure stability and reliability.

3. Temporary Chain Link Fence Saddle Clamp

Each panel is further reinforced with Galvanized saddle clamps, nuts, bolts used to connect two panels together.

4. Temporary Chain Link Fence Loading

DB Chain link Panel Fencing is an excellent perimeter security solution , and easy to transport and

secure into place, above-ground panel fencing provides a sturdy and reliable fence for many job-site

applications.

5. Temporary Chain Link Fence Applications

Some of the most common uses for temporary chain link panels include:

• Commercial Construction Sites

• Housing Developments

• Highway projects

• Remodels & store front renovation

• Public Works Projects

• Post-Disaster Reconstruction

Astm A392-06 Standards Temporary Fencing Chain Link

DB Fencing Company provides premium quality temporary chain link fence that are hand crafted from start to finish. Our chain link fence panels are guaranteed to last 5 years. All panels are constructed using low carbon Steel Q235 material. Also, tension bars and tension bands on the left and right can be requested by customers.

1. Temporary Chain Link Fence Panels Specs

• Panel Size: 6ft x 12ft, 6ft x 10ft, 6ft x 8ft, 8ft x10ft, 8ft x 12ft

• Frame: 1.25"/32 mm, 1.5"/38 mm, 1.6"/40 mm round optional

• Chain Link Mesh Wire: 9 ga/2.9mm, 10.5 ga/2.7mm, 11 ga/2.3mm, 11.5 ga/2.2mm, 12 ga/2.0mm optional

• Chain Link Mesh Size: 2" (50 × 50 mm), 2.25" (57 × 57 mm), 2.4" (60 × 60 mm), 2.75" (70 × 70 mm) optional

• Cross Brace: Vertical, horizontal brace with 1"/1.25’’ round or the same with frame O.D

• Treatment: Pre-Galvanized pipe and panel welded,then galvanized spraying or hot dipped galvanized

• Standard 1: AS 1725-2010 Chain Link Fabric Security Fences and Gates

• Standard 2: AS 2423-2002 – Coated Steel Wire Fencing Products for Terrestrial,Aquatic and General Use

• Standard 3: AS 54687-2007 –  Temporary Fencing and Hoarding


2.  Cross Brace: 1" or 1.25” O.D,14 Gauge wall thick

• Plus Bracing – Both vertical and horizontal bracing to impact strength from outside and wind to be a durable panels

• Vertical Bracing – The vertical brace (centered in frame horizontally) increasin the strength and durability of the fence panel

3. The stands of temporary chain link fence size 16" x 36", with 1-3/8" diameter tubing and slightly smaller uprights for panels to fit over.

4. Temporary chain link fence clamps

Pressed steel, 8 Gauge, Designed to join fence panels together, Hot-dipped galvanized silver color,

Included 3/8" x 2-1/2" H.D.G. carriage bolt & nut; priced per Set.

5. Barb Wire, Razor Wire -Stop attempting to gain illegal access to your site

The barb wire and razor wire can be along the top of our 6ft and 8ft height temporary chain link fences and matching gates.

Each wire type will discourage fence climbers. We advise customers check with local laws to learn if barb/razor is permitted or violates a city ordinance.

Normally three strands barbed wire from post to post in a straight line, or arranging the barb arms at a 45 degree angle. The latter method is very rare because the barb sticks out into a walking path.

6. Privacy Fence Screens, Windscreens

The privacy fence screens / windscreens is fit to 6ft or 8ft height chain link fences, which is  polyethylene mesh to provide 88% privacy and 12% airflow.

Highly effective to dampen wind, resist water, mold and mildew, provide privacy and cut UV rays.

Very popular for temporary commercial use at construction sites, agricultural fields, emergency restoration areas or shelters, sports fields, courtyards, nurseries or gardens.

7. Temporary chain link fence gate

• Personal Gate: The gate of Temp Fence chain link fence is available with 3′ wide opening Pedestrian
  gate with hinges and pad-lockable latch, giving a path to safely and efficiently allow the crows.





• Swing gates: The swing gate fully open to allow trucks to pass through. If the opening is 12 feet or less (such as a pedestrian entrance), a single swing gate is sufficient. Swing gates usually open inward (toward the property), unless impossible to do otherwise. For wider openings (vehicle entrances), double swing gates are recommended as this configuration requires less room to operate than a single, longer gate.

• Slide gates: Allows sufficient room for traffic of all kinds to pass through. Slide Gates require very little room to operate and are a preferred option when a construction area has limited space, such as near a roadway, property line or permanent structure. The area around a slide gate must be level to allow each gate to move freely and parallel to the attached chain link fence for proper operation

.

 8. Temporary chain link fence packing and loading



9. Temporary chain link fence features

• 360° full welded tubular frame
• Galvanized 60 or 28 microns to anti- corrosion
• Installs on any surface including ground, asphalt or concrete
• ASTM A392-06 standard minimize the amount of corrosion
• The welding corner joints are galvanized sprayed painting to cover any exposed metal.

• Galvanized saddle clamps, nuts, bolts used to attach panels together.
•

Temporary Chain Link Fence Panels 6ft x 10ft Construction Fence

Our Temporary Chain Link Fence is a great way to ensure security your job site. Using the chain link wire waved into mesh, tie into a steel tube frame with the horizontal and vertical brace to support strongly, then galvanized spraying paint on the welded point. Fastening the chain link fence panel with the saddle clamp and fix with the stands finally to protect what you want.

1. Temporary Chain Link Fence Panels Specs

• Panel Size: 6ft x 12ft, 6ft x 10ft, 6ft x 8ft, 8ft x10ft, 8ft x 12ft

• Frame: 1.25"/32 mm, 1.5"/38 mm, 1.6"/40 mm round optional

• Chain Link Mesh Wire: 9 ga/2.9mm, 10.5 ga/2.7mm, 11 ga/2.3mm, 11.5 ga/2.2mm, 12 ga/2.0mm optional

• Chain Link Mesh Size: 2" (50 × 50 mm), 2.25" (57 × 57 mm), 2.4" (60 × 60 mm), 2.75" (70 × 70 mm) optional

• Cross Brace: Vertical, horizontal brace with 1"/1.25’’ round or the same with frame O.D

• Treatment: Pre-Galvanized pipe and panel welded,then galvanized spraying or hot dipped galvanized

• Standard 1: AS 1725-2010 Chain Link Fabric Security Fences and Gates

• Standard 2: AS 2423-2002 – Coated Steel Wire Fencing Products for Terrestrial,Aquatic and General Use

• Standard 3: AS 54687-2007 –  Temporary Fencing and Hoarding


2.  Cross Brace: 1" or 1.25” O.D,14 Gauge wall thick

• Plus Bracing – Both vertical and horizontal bracing to impact strength from outside and wind to be a durable panels

• Vertical Bracing – The vertical brace (centered in frame horizontally) increasin the strength and durability of the fence panel

3. The stands of temporary chain link fence size 16" x 36", with 1-3/8" diameter tubing and slightly smaller uprights for panels to fit over.

4. Temporary chain link fence clamps

Pressed steel, 8 Gauge, Designed to join fence panels together, Hot-dipped galvanized silver color,

Included 3/8" x 2-1/2" H.D.G. carriage bolt & nut; priced per Set.

5. Barb Wire, Razor Wire -Stop attempting to gain illegal access to your site

The barb wire and razor wire can be along the top of our 6ft and 8ft height temporary chain link fences and matching gates.

Each wire type will discourage fence climbers. We advise customers check with local laws to learn if barb/razor is permitted or violates a city ordinance.

Normally three strands barbed wire from post to post in a straight line, or arranging the barb arms at a 45 degree angle. The latter method is very rare because the barb sticks out into a walking path.

6. Privacy Fence Screens, Windscreens

The privacy fence screens / windscreens is fit to 6ft or 8ft height chain link fences, which is  polyethylene mesh to provide 88% privacy and 12% airflow.

Highly effective to dampen wind, resist water, mold and mildew, provide privacy and cut UV rays.

Very popular for temporary commercial use at construction sites, agricultural fields, emergency restoration areas or shelters, sports fields, courtyards, nurseries or gardens.

7. Temporary chain link fence gate

• Personal Gate: The gate of Temp Fence chain link fence is available with 3′ wide opening Pedestrian
  gate with hinges and pad-lockable latch, giving a path to safely and efficiently allow the crows.





• Swing gates: The swing gate fully open to allow trucks to pass through. If the opening is 12 feet or less (such as a pedestrian entrance), a single swing gate is sufficient. Swing gates usually open inward (toward the property), unless impossible to do otherwise. For wider openings (vehicle entrances), double swing gates are recommended as this configuration requires less room to operate than a single, longer gate.

• Slide gates: Allows sufficient room for traffic of all kinds to pass through. Slide Gates require very little room to operate and are a preferred option when a construction area has limited space, such as near a roadway, property line or permanent structure. The area around a slide gate must be level to allow each gate to move freely and parallel to the attached chain link fence for proper operation

.

 8. Temporary chain link fence packing and loading



9. Temporary chain link fence features

• 360° full welded tubular frame
• Galvanized 60 or 28 microns to anti- corrosion
• Installs on any surface including ground, asphalt or concrete
• ASTM A392-06 standard minimize the amount of corrosion
• The welding corner joints are galvanized sprayed painting to cover any exposed metal.

• Galvanized saddle clamps, nuts, bolts used to attach panels together.
•

Temporary Chain Link Fence for Commercial Construction and Housing Developments

DB Fencing is a national brand with a good reputation for high quality temporary chain link fence and reliable services. Just tell us the temporary chain link fence height, we provide the detailed specs of fence design, and then make the 3D Drawing of your event or construction site. So, you will know who is professional.

Our temporary chain link fence prices are competitive with the market. Whether your job site is Construction Sites or Special Event ( Secure installation on any surface: dirt, asphalt or concrete), we can design it professionally for u.

Durable steel chain link fencing that minimizes customer liability damage risk

1. Temporary Chain Link Fence Panels Specs

• Panel Size: 6ft x 12ft, 6ft x 10ft, 6ft x 8ft, 8ft x10ft, 8ft x 12ft

• Frame: 1.25"/32 mm, 1.5"/38 mm, 1.6"/40 mm round optional

• Chain Link Mesh Wire: 9 ga/2.9mm, 10.5 ga/2.7mm, 11 ga/2.3mm, 11.5 ga/2.2mm, 12 ga/2.0mm optional

• Chain Link Mesh Size: 2" (50 × 50 mm), 2.25" (57 × 57 mm), 2.4" (60 × 60 mm), 2.75" (70 × 70 mm) optional

• Cross Brace: Vertical, horizontal brace with 1"/1.25’’ round or the same with frame O.D

• Treatment: Pre-Galvanized pipe and panel welded,then galvanized spraying or hot dipped galvanized

• Standard 1: AS 1725-2010 Chain Link Fabric Security Fences and Gates

• Standard 2: AS 2423-2002 – Coated Steel Wire Fencing Products for Terrestrial,Aquatic and General Use

• Standard 3: AS 54687-2007 –  Temporary Fencing and Hoarding


2.  Cross Brace: 1" or 1.25” O.D,14 Gauge wall thick

• Plus Bracing – Both vertical and horizontal bracing to impact strength from outside and wind to be a durable panels

• Vertical Bracing – The vertical brace (centered in frame horizontally) increasin the strength and durability of the fence panel

3. The stands of temporary chain link fence size 16" x 36", with 1-3/8" diameter tubing and slightly smaller uprights for panels to fit over.

4. Temporary chain link fence clamps

Pressed steel, 8 Gauge, Designed to join fence panels together, Hot-dipped galvanized silver color,

Included 3/8" x 2-1/2" H.D.G. carriage bolt & nut; priced per Set.

5. Barb Wire, Razor Wire -Stop attempting to gain illegal access to your site

The barb wire and razor wire can be along the top of our 6ft and 8ft height temporary chain link fences and matching gates.

Each wire type will discourage fence climbers. We advise customers check with local laws to learn if barb/razor is permitted or violates a city ordinance.

Normally three strands barbed wire from post to post in a straight line, or arranging the barb arms at a 45 degree angle. The latter method is very rare because the barb sticks out into a walking path.

6. Privacy Fence Screens, Windscreens

The privacy fence screens / windscreens is fit to 6ft or 8ft height chain link fences, which is  polyethylene mesh to provide 88% privacy and 12% airflow.

Highly effective to dampen wind, resist water, mold and mildew, provide privacy and cut UV rays.

Very popular for temporary commercial use at construction sites, agricultural fields, emergency restoration areas or shelters, sports fields, courtyards, nurseries or gardens.

7. Temporary chain link fence gate

• Personal Gate: The gate of Temp Fence chain link fence is available with 3′ wide opening Pedestrian
  gate with hinges and pad-lockable latch, giving a path to safely and efficiently allow the crows.





• Swing gates: The swing gate fully open to allow trucks to pass through. If the opening is 12 feet or less (such as a pedestrian entrance), a single swing gate is sufficient. Swing gates usually open inward (toward the property), unless impossible to do otherwise. For wider openings (vehicle entrances), double swing gates are recommended as this configuration requires less room to operate than a single, longer gate.

• Slide gates: Allows sufficient room for traffic of all kinds to pass through. Slide Gates require very little room to operate and are a preferred option when a construction area has limited space, such as near a roadway, property line or permanent structure. The area around a slide gate must be level to allow each gate to move freely and parallel to the attached chain link fence for proper operation

.

 8. Temporary chain link fence packing and loading



9. Temporary chain link fence features

• 360° full welded tubular frame
• Galvanized 60 or 28 microns to anti- corrosion
• Installs on any surface including ground, asphalt or concrete
• ASTM A392-06 standard minimize the amount of corrosion
• The welding corner joints are galvanized sprayed painting to cover any exposed metal.

• Galvanized saddle clamps, nuts, bolts used to attach panels together.
•
